- Brand
- TOYOBO TEONEX
- Product Name
- TEONEX PEN FILMS
- Item
- Q5100 （standard type）Q5300（online annealing）
- Application Industry/Scope
- *Small space acoustics – microspeaker diaphragms for alarm walkie-talkie headset cellphones etc. *Motor insulator *CCL *FPC *Magnetic Medie such as Data storage tape *Antireflection release protection Film processed flim *Electric vehicle battery insulation etc.
- Link
- Click to go
-
Teonex® is biaxially oriented polyethylene naphthalate (PEN) films.
It is slightly hazy film with excellent handling properties for general purpose and high dimentional stability.
It is used in electronic components such as capacitors, motors, transformers, flexible printed circuits etc.
And specific in acoustics, mainly used as the membrane of speaker for alarm, walkie-talkie, headset, functional cellphone, and acoustic parts in Household appliances, etc.
-
Standard Type-Q5100：12-250micron
Type
Thickness
(micron)
Width
(milimeter)
Length
(meter)
Net weight (KG)
Core (inch)
Q5100
12um
1000mm
3000m
49
6 inch
NQ510
16um
1000mm
3000m
65.3
6 inch
Q5100
19um
1000mm
3000m
77.5
6 inch
Q5100
22um
1000mm
2000m
59.80
6 inch
Q5100
25um
1000mm
2000m
68
6 inch
Q5100
30um
1000mm
1000m
40.8
3 inch
Q5100
38um
1000mm
1000m
51.7
3 inch
Q5100
50um
1000mm
1000m
68
3 inch
Q5100
75um
1000mm
1000m
102
6 inch
Q5100
100um
1000mm
400m
54.4
6 inch
Q5100
125um
1000mm
400m
68
6 inch
Q5100
188um
910mm
300m
69.8
3 inch
Low shrinkage Type-Q5300：25，50，75 micron（inline annealing）
Super low shrinkage Type-Q8300：25，50，75 micron（offline annealed）
-

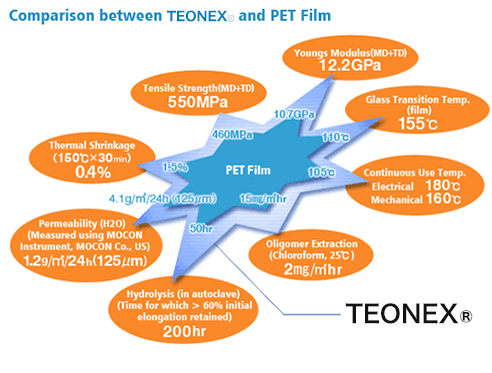

• Teonex PEN Film KEY PROPERTIES
• Low density，High Stiffness
• Moisture resistance
• Excellent sound quality low distortion
• Dimensional stability with low thickness tolerance
• Easy to be processed/thermoformed
Other key data
• Tm=269 0C，
• Tc =210 0C
• Tg =155 0C
