Victrex Aptiv films offer an unique combination of properties，providing an unrivaled material solution for engineers and designers for use in high performance applications.

It is the most versatile and high performing thermoplastic film available，and has a proven track record of success in demanding applications in a broad range of industries and markets including electronic, acoustics, aerospace, automotive，industrial, oil and gas, chemical processing and many more.

APTIV film is produced by Victrex in one of the most technologically advanced film extrusion facilities in the world. Victrex’s fully integrated supply chain for VICTREX PEEK polymer, Victrex’s manufacturing capabilities guarantee material quality, supply, consistency and performance.

APTIV film is available in several grades according to the specific needs of the end use application.

Within each grade a broad range of thicknesses are available from 6 to 750 microns (0.25 to 30 mils).

The standard width of APTIV film is 610/650 mm although some films can be provided in widths up to 1450 mm.

On request the film can be further slit into small width.

Amorphous

2000 Series films are unfilled amorphous films available in thicknesses from 6 microns up to 300 microns. The 2000 series of films are typically selected for processing to the semi-crystalline state using a thermoforming process.

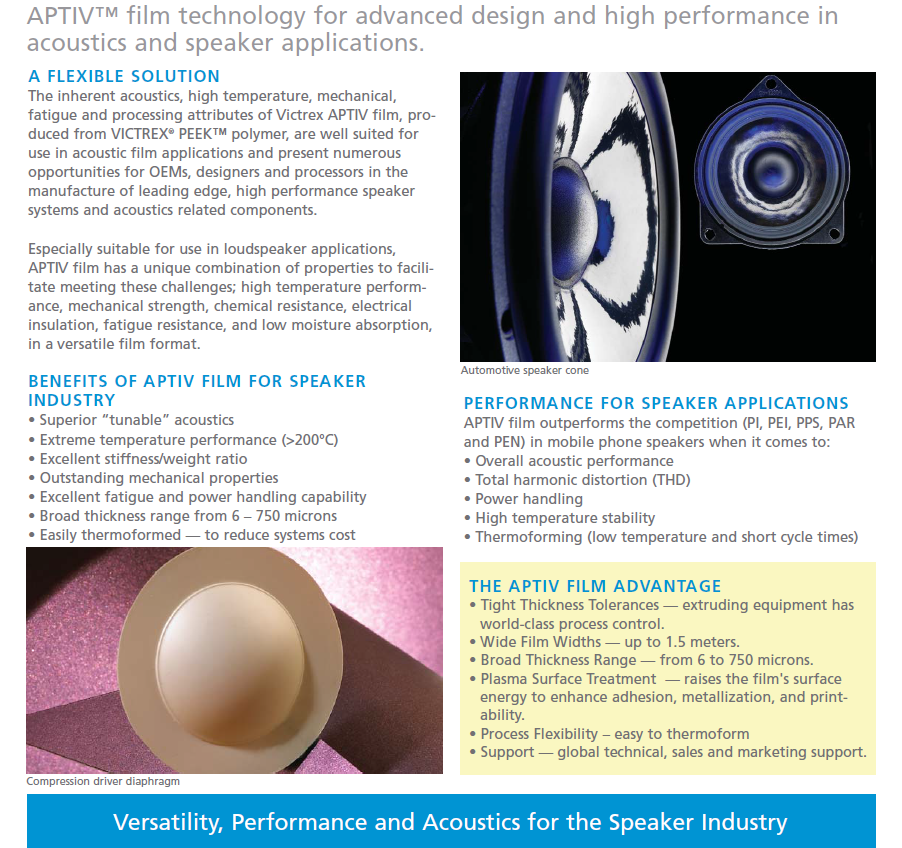

DBX Series: MADE FOR THE MOST DEMANDING MICRO SPEAKER DESIGNS. Available in thicknesses 3，4，5 microns.

Tightest thickness tolerances yet which will contribute to giving you the confidence to achieve cutting-edge designs.

2100 series are mineral-filled amorphous films. Available in thicknesses 100125 microns.
